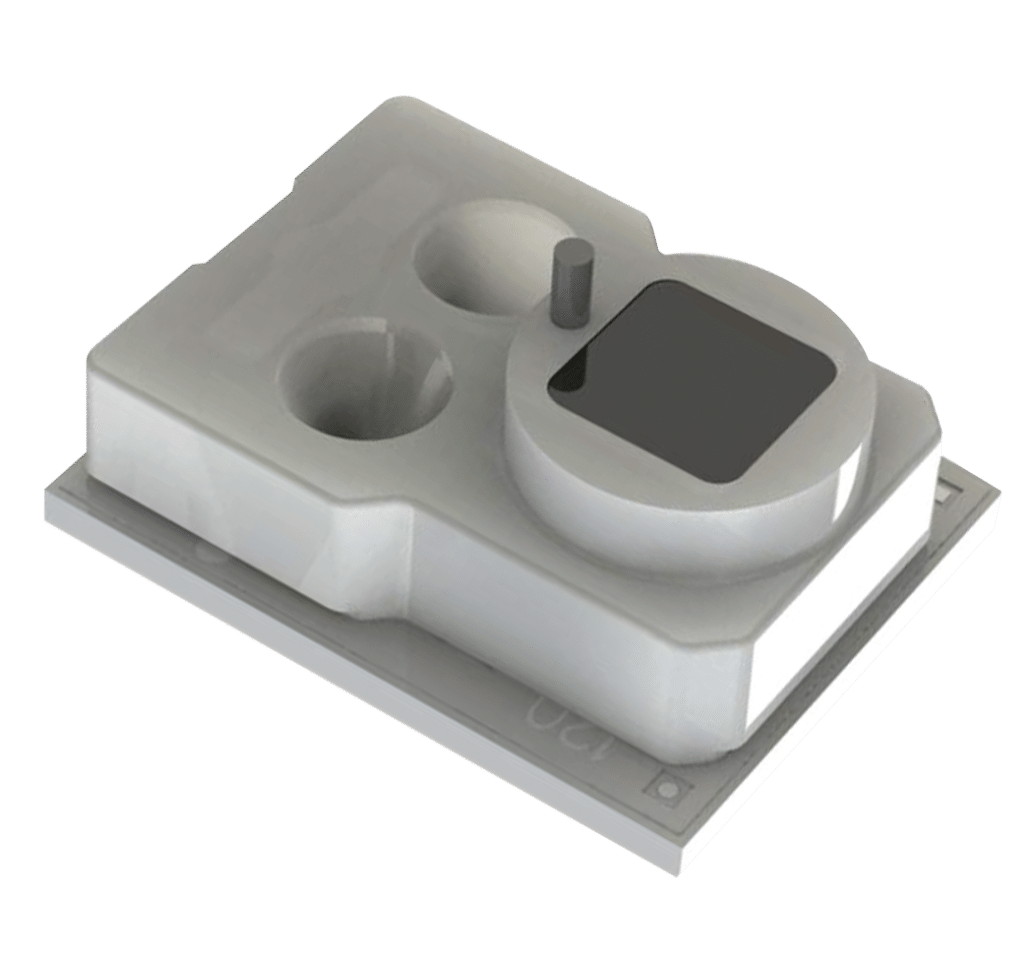

Carly Riley2023-08-17 14:38:192026-05-04 13:39:34Creating Accurate Blood Pressure Sensors for Medical EquipmentAre you looking for an invasive blood-pressure sensor that can also measure temperature? We have a solid history of supplying our AAMI-compliant blood-pressure sensor, which is now available with a high accuracy temperature sensor. The BP+T Series can also be customized for other medical-grade applications. If you want a partner with a proven product and relevant experience, contact us today!
Extended Pressure Range
Pressure
-500 to 1000 mmHg
Temperature Sensor
Accuracy
+/-0.5 °C
Features
Temperature
15 to 40 °C
Configuration
Gage
Media
Air, gas, and liquid
Shipping
120-unit ceramic substrates/snapstrates or tape and reel
Flexibility
Custom options available
Typical Applications
Blood-pressure measurement (invasive & disposable)
ECMO Machines
Heart/lung machine
Dialysis machines
Infusion pumps
Surgical procedures
FAQ
Is the BP P+T compatible with the BP-Series geometry?Show Answer
Yes, the BP P+T can be integrated in the same housing-cavity as a BP-Series (BP0001) with 2.4mm radius gel-port sealing.
Is the temperature measurement sensing element protected for media compatibility?Show Answer
Yes, it is protected by a Parylene C coating
How does the temperature conversion calculation work?Show Answer
The thermistor ohmic value can be easily (instantaneously) converted with the Steinhart-Hart equation and coefficients in the datasheet.
