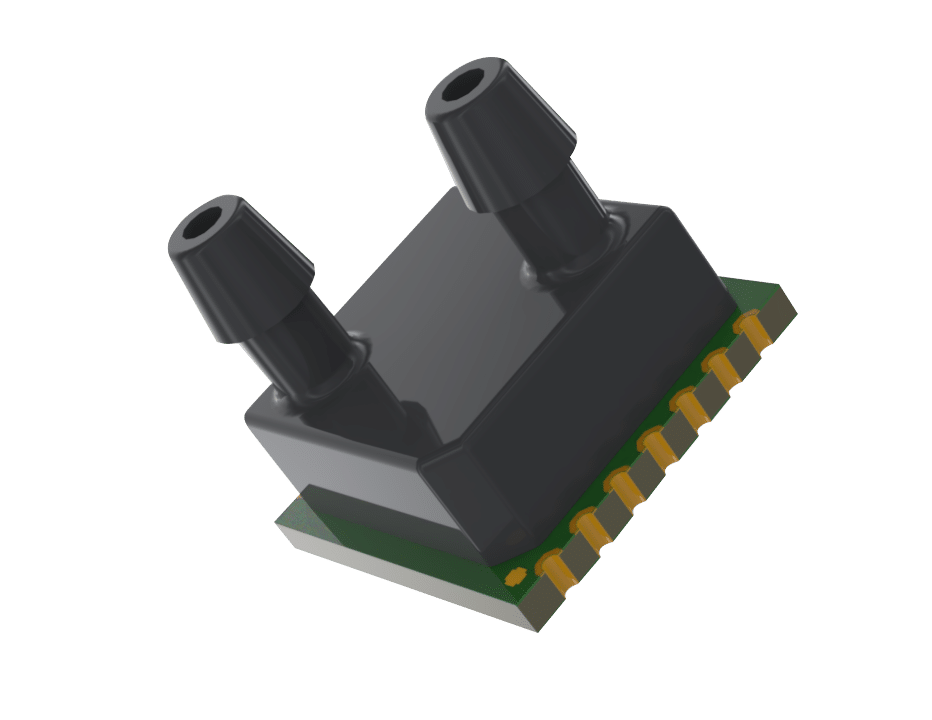

Merit Sensor2025-05-07 16:00:192026-05-01 10:52:47The LP2 Series Ultra-Low-Pressure, Low-Cost SensorWhat you get with the LP2 Series is a sensor for very low pressures that is easy to solder to a PC board and connect to standard tubing. We offer it fully compensated, saving you calibration time and equipment on the assembly line. Once in the application, the LP2 Series performs with excellent linearity, hysteresis, and stability.
Features
Pressure Range
0.6 to 28 in H2O / 0.15 to 7 kPa / 0.02 to 1 psi / 1.5 to 70 mbar
Accuracy
±1.5% FSO
Temperature Range
-40 to 85 °C
Pressure Type
Differential, gauge/gage
Output
Digital I2C or Analog 0.5 to 4.5Vdc
Media
Clean, dry air and non-corrosive gases
Shipping
Tape and reel
Flexibility
Custom calibration upon request
Typical Applications
Industrial
Filters (air flow via ΔΡ and air pressure)
HVAC systems and control units
Sensors and transmitters
Medical
CPAP
Spirometers
Ventilators
Nebulizers
